We are Factory of kinds of Non Asbestos Rubber Sheet / Seal Gasekt Sheet.
We are in this line for more than 23 Years!

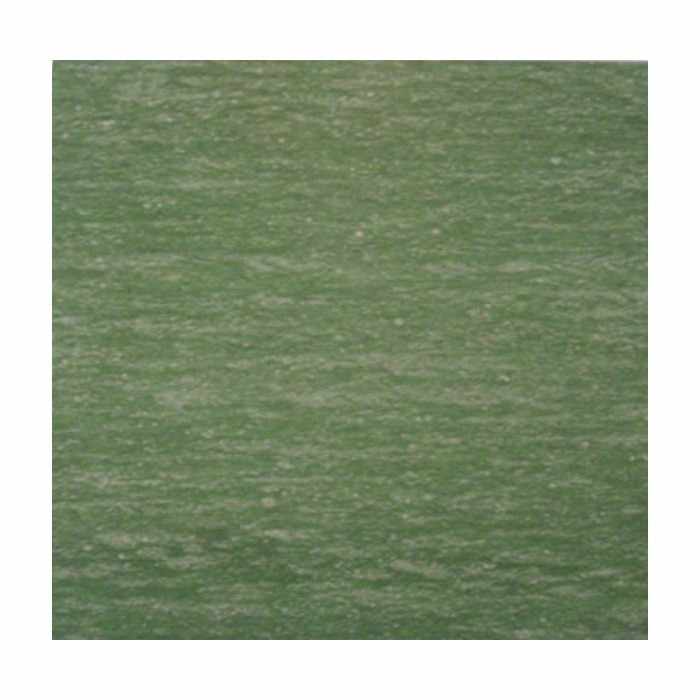

Non Asbestos Rubber Sheet / Seal Gasket Sheet
(Non CAF Asbestos Jointing Sheet Paronite )
We produce kinds of Non Asbestos Rubber Sheet. It is without asbestos, but we also produce the sheet with it.
Non Asbestos Rubber Sheet without asbestos or with it XB150-XB510 NXB150-NXB510
Non Asbestos Rubber Sheet with Graphite and wire mesh
Non Asbestos Latex Sheet with Punched Sheet
| Non-Asbestos Rubber Sheet / Sealing Gasekt Sheet physical property | ||||||||
| GB/T3985-1995 | ||||||||
| Item | XB150 | XB200 | XB250 | XB300 | XB350 | XB400 | XB450 | XB510 |
| Thickness | 0.4mm ~ 6.0mm | |||||||
| Density | 2.0 g/cm3 | |||||||
| Burning loss≤ | 30% | 30% | 28% | |||||
| Rebound degree | 40 | 40 | 45 | |||||
Temperature °c | 150~170 | 200~220 | 250~270 | 300~320 | 350~370 | 400~420 | 450~470 | 510~550 |
| Pressure MPa | 1.5~2 | 2~3 | 3~4 | 4~5 | 7~8 | 8~9 | 11~12 | 14~15 |
| Tensile Strength ≥ | 5MPa | 6MPa | 7~8MPa | 9MPa | 12MPa | 15MPa | 19MPa | 22Mpa |
| Steam airtightness | with the temp of 150~170 °c and the pressure of 1.5~2MPa, keep for 30 min without puncture | with the temp of 200~220°c and the pressure of 2~3MPa, keep for 30 min without puncture | with the temp of 250~270°c and the pressure of 3~4MPa, keep for 30 min without puncture | with the temp of 300~320°c and the pressure of 4~5MPa, keep for 30 min without puncture | with the temp of 350~370°c and the pressure of 7~8MPa, keep for 30 min without puncture | with the temp of 400~420°c and the pressure of 8~9MPa, keep for 30 min without puncture | with the temp of 450~470°c and the pressure of 11~12MPa, keep for 30 min without puncture | with the temp of 510~550°c and the pressure of 14~15MPa, keep for 30 min without puncture |
| Aging Coefficient ≥ | 0.9 | |||||||
| Compressibility % | 12±5 | |||||||
| Stress-relaxation ≤ | 50 | |||||||
| Pliability | No Crack | |||||||
| Color | Black, green, red, grey, yellow, or as request | |||||||
| Size |
4120mmx1520mm, 2060mmx1520mm, 1520mmx1350mm, 3180mmx1270mm, 1270mmx1270mm, 1520mmx1520mm, 1520mmx1020mm, or as request.
| |||||||
| P.S. | Available with wire/metal mesh reinforcing or graphite coating | |||||||
1. For 0.4mm-3.0mm in rolls with kraft paper inside and weave bags outside.
For 4.0mm-6.0mm with wooden pallets.
2. As customer's requirements, with wooden pallets.
Our Services
Dalian Shangdu WJH Co., Ltd. is one of the professional and biggest manufacturers in China. Our main products are Non Asbesto Rubber Sheet, Industrial Rubber Sheet and other Sealed Gasket material. We have been in this line for more than 23 years .Keeping quality is our Objective.
1. Q: Do you have your own factory, or only a trading company?
A: We have our own factory, and our factory is located in Cangzhou City, Hebei Province,
2. Q:Could I get some samples, and how?
A: Of course, we provide free samples.
3. Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss the details by E-mail.
